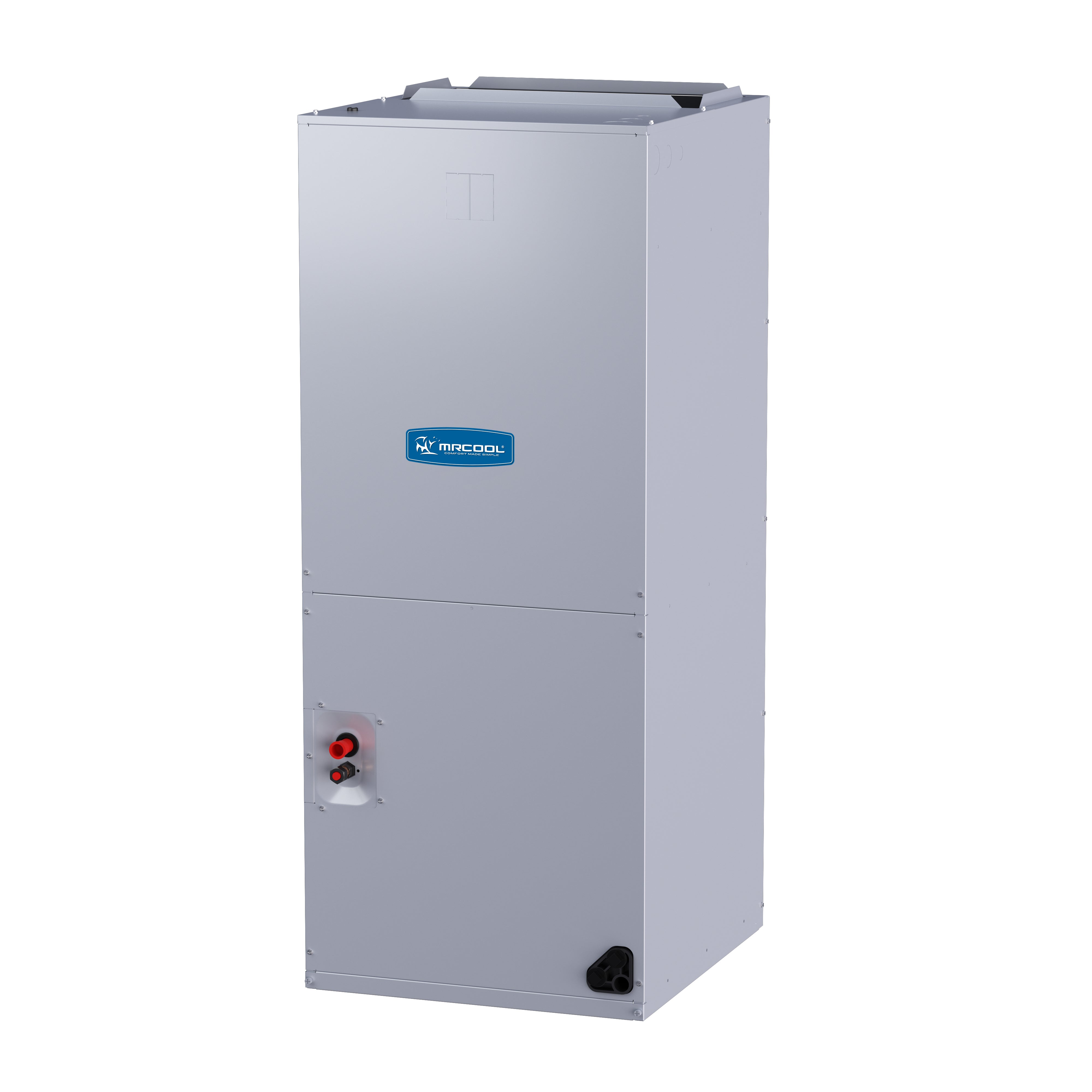

MRCOOL PRODIRECT Series PSC Air Handler HAH024FPA

MRCOOL PRODIRECT Series PSC Air Handler HAH024FPA

PRODIRECT Series 2 Ton BTU PSC Air Handler

The 2 Ton PRODIRECT™ Series PSC Air Handler is an excellent choice for enhancing your home's HVAC system. It is compatible with both cooling and heat pump systems, offering flexibility for various home configurations. With a SEER2 rating of 15.2, this air handler delivers good energy efficiency. Constructed with all-aluminum tubes and fins, it is designed for durability and resistance to corrosion, instilling long-lasting performance. The factory-sealed cabinet of the 24K PRODIRECT™ Series PSC Air Handler minimizes air leakage to 2% or less at 1.0 inch water column pressure, which helps maintain energy consumption. Additionally, its versatile design allows for multi-positional installation, making it suitable for different spaces. The unit features both horizontal and vertical condensate drain pans, and routine maintenance is straightforward, thanks to the slide-out blower and coil components. The heating capacity can also be adjusted with optional heat kits ranging from 5 to 20 kW to meet your comfort needs. This air handler is AHRI-certified and ETL-listed, ensuring it meets high industry standards. MRCOOL® provides a standard 5-year warranty plus an additional 5-year extended parts and compressor warranty upon registration. The 2 Ton PRODIRECT™ Series PSC Air Handler is a reliable and efficient solution for maintaining consistent comfort in your home year-round.

Key Specifications

Features

• • Multiposition installation
  • Blower and coil easy slide out for ease of maintenance
  • Evaporator Coil Tube Material: Aluminum
  • Evaporator Coil Tube Size(in.): 9/32
  • AHRI Listed & ETL Certified.
