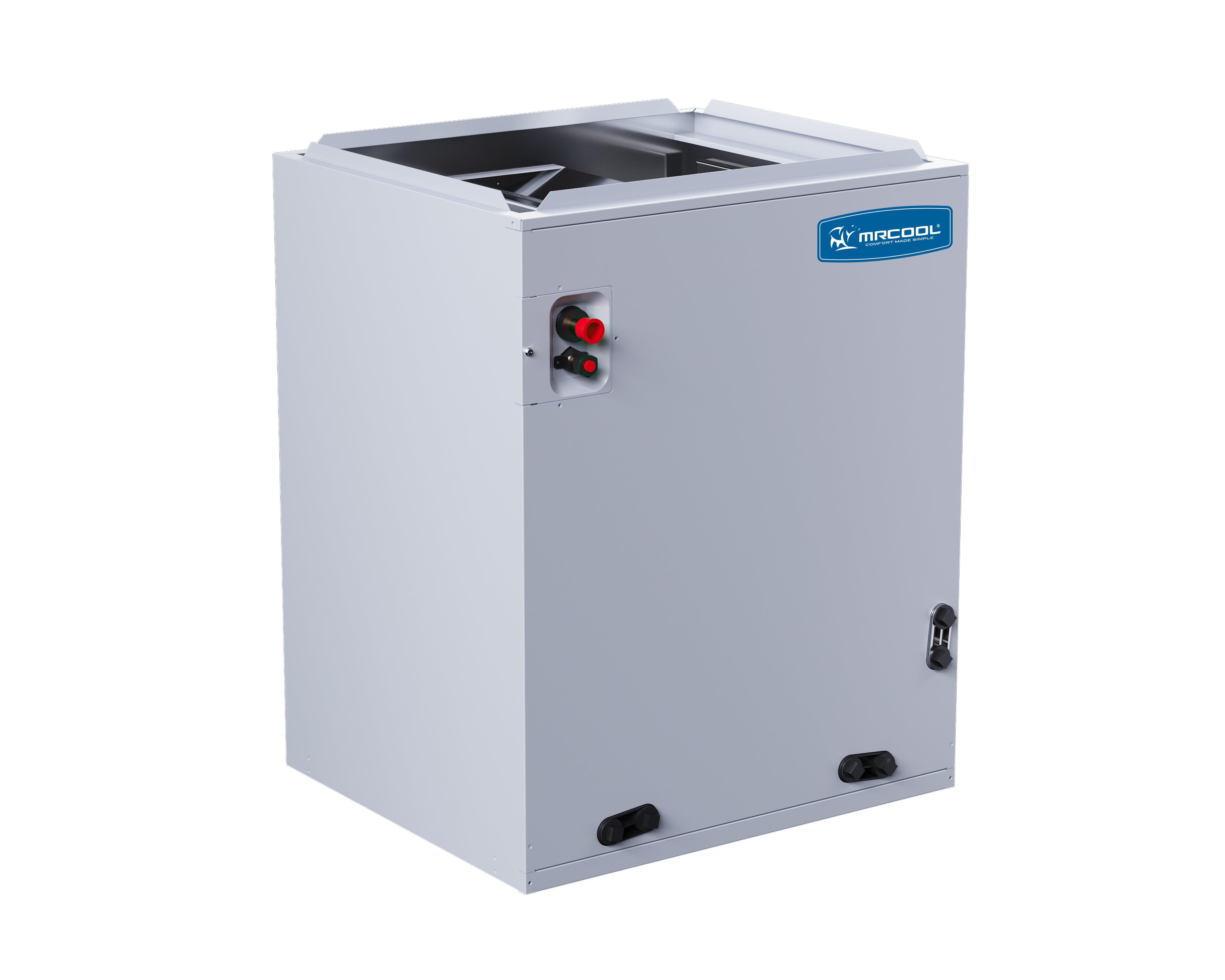

MRCOOL PRODIRECT Series Cased Coils HCMP4248CFOA

MRCOOL PRODIRECT Series Cased Coils HCMP4248CFOA

42-48k PRODIRECT Series A Coil - 21in

The PRODIRECT™ Series A Coil is the ultimate solution for maximizing the performance and efficiency. Built for compatibility with both R410A and R22 refrigerants, this coil seamlessly integrates into PRODIRECT™ systems. It features a robust heat exchanger with advanced aluminum fins and internally grooved copper tubing, ensuring superior heat transfer and exceptional durability. Designed with practicality in mind, the coil is housed in a thermally insulated cabinet lined with foil-faced insulation, effectively preventing condensation and boosting overall system efficiency. Its versatile multi-positional design allows for easy installation in various settings, and dual drain pans simplify maintenance tasks. With a 19-½ inch supply duct, you can easily adapt it to fit diverse HVAC configurations. Measuring 30 inches in height and 21 inches in width, the PRODIRECT™ Series A Coil is versatile enough to accommodate a range of systems. It includes a 3/8-inch liquid line and a 7/8-inch suction line for standard HVAC compatibility. Plus, with UL certification, you can trust that it meets the highest safety and quality standards. Backed by a standard 5-year warranty plus an additional 5-year extended warranty when installed with an approved MRCOOL® Condenser, this coil is your reliable choice for your home.

Key Specifications

Features

• • Multiposition installation
  • Evaporator Coil Tube Material: Aluminum
  • Evaporator Coil Tube Size(in.): 9/32
  • Supply Duct(in.): 19 1/2
